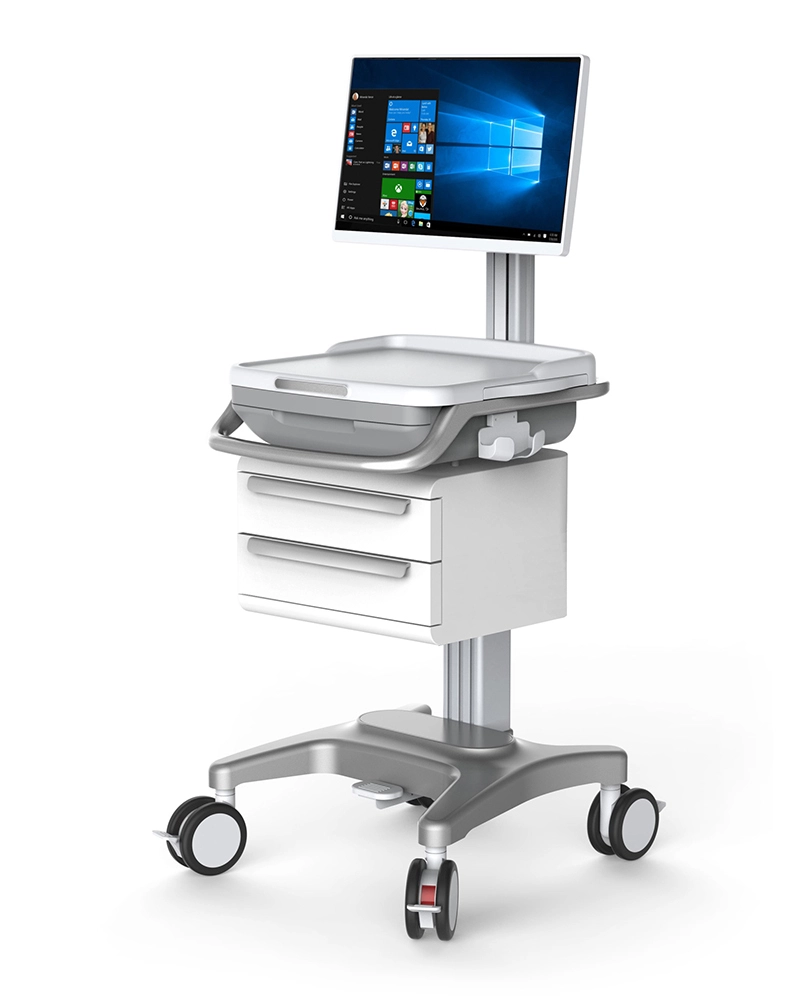

Multi-functional Nursing Workstation Trolley HX-1903

Multi-functional Nursing Workstation Trolley HX-1903

 Multi-functional Nursing Workstation Trolley Parameters

1.1

Multi-functional nursing workstation trolley core components：computer, battery, power control system, trolley

1.2

Mainframe computer

Industrial control level electric all-in-one computer (physical heat dissipation silent)

1.3

Panel material

Table surface ABS antibacterial material smooth surface, easy to clean

2

Computer parameter

2.1

CPU chip

Intel Core I5

2.2

OS system

Windows 7，windows 10

2.3

Internal memory

DDR  8GB

2.4

Hard disk

256G Solid state drive

2.5

Wireless network

802.11 ac/a/b/g/n

2.6

Display interface

VGA+HDMI,Can support both

2.7

USB interface

USB3.0*4

2.8

Display interface

HDMI*1

2.9

Wired network port

Gigabit network port*1

2.10

Waterproof and dustproof

The vehicle passed the water and dust detection

2.11

Electricity safety

Electricity safety

2.12

Communication network

Built-in 5GB communication module, support full Netcom SIM card (optional according to the user's data connection requirements)

2.13

Use environment

Pass the third party vibration test

3

Battery parameter

3.1

Battery cell

Lithium iron phosphate

3.2

Cycle number

≥2000 times

3.3

Charging time

≤5 hours

3.4

Service time

≥8 hours

3.5

Battery capacity

19V18Ah(342Wh)

3.6

Power cord

Convenient charging and storage at different distances

3.7

Leakage protection

With the shell to earth leakage current protection, electric shock protection function

3.8

Current-voltage protection

With over voltage, over current, under voltage, over charge, over discharge protection function

4

Power control system

4.1

Modular design

The modular design of power control system is conducive to stability and easy maintenance

4.2

Switch design

Self-locking push-button switch, completely cut off power when not working, conducive to transport safety and protect battery life

5

Caster parameter

5.1

Caster size

Medical grade silent casters

5.2

Caster characteristic

Comply with medical safety regulations infection control, non-sticky shavings universal wheel, overcome all kinds of flooring

5.3

Caster quantity

2 cardan wheels with brakes, 2 cardan without brakes

6

Trolley parameter

6.1

Storage drawer

1-3 floors

6.2

Overall dimension

Width 520 x height 1050 (reference) mm

6.3

Table size

Width 480mm x length 460mm

6.4

Weight of stroller

50KG（W/O Monitor, computer, power supply）

6.5

Main material

The table surface is ABS engineering plastic, the column is aluminum alloy profile, and the chassis and handle are cast aluminum

6.6

Lifting dimension

The lower lifting stroke is 300mm, and the upper lifting stroke is 150mm

6.7

Information configuration

I5-3230M,4GB RAM, 128GB SSD, dual-band wireless, 8 hours of battery life

6.8

Auxiliary dimension

360*220mm

6.9

plug-in

Customized according to customer requirements

6.10

Material of complete machine

Aluminum alloy, stainless steel and other high-quality anti-rust metal materials, panel using matte, medical grade ABS antibacterial material

6.11

Rail

German import with damping silent guide

6.12

Haft

Sunken all-aluminum handle, push-pull front and back, closed ring

6.13

Keyboard and mouse location

Hidden keyboard position, above the handle, unblocked, dedicated mouse mount

6.14

Desktop design

One seamless forming, with object anti-slide bar

6.15

Safe use

Pass third party cart ramp test

7

Monitor stand parameter

7.1

Display size

21.5 inch

7.2

Bracket adjustment Angle

Rotate 180 degrees left and right, the screen elevation can be adjusted by 30 degrees, and the display height can be adjusted by 150MM

8

After-sales service

8.1

Technical training

Provide pre-sales professional technical support, simple troubleshooting training, prototype testing

8.2

Service hotline

Support 24*7 hours and 400 after-sales service hotline

9

Enterprise production

9.1

ISO9001

Quality management system

9.2

ISO14001

Environmental management system

9.3

ISO45001

Occupational health and safety management system

9.4

ISO20000

Information technology service management system

9.5

ISO27001

Information security management system

9.6

Product safety

Eu CE certificate

9.7

Product safety

China Electrical safety 3C certificate
