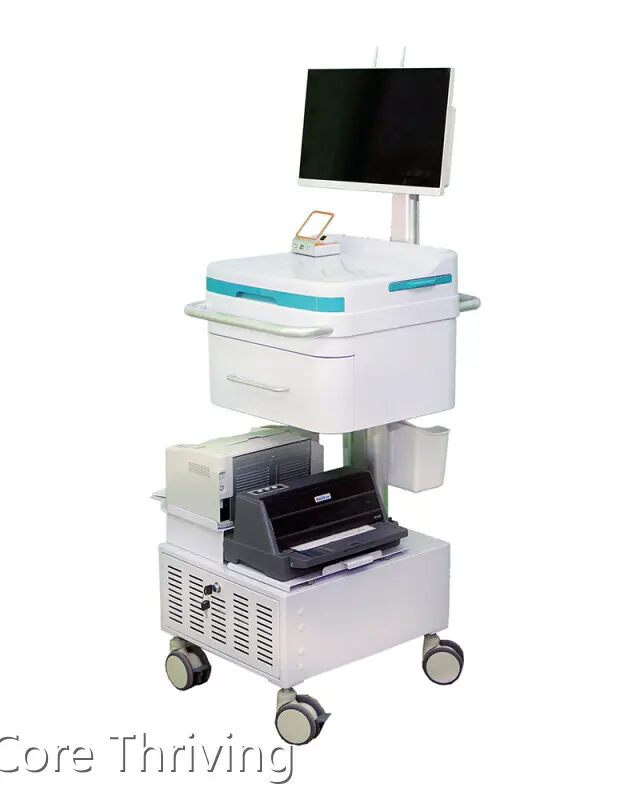

High-quality Medical Mobile Computer Workstation Company

Medical Accounts Cart parameters HX-2105

Medical Accounts Cart parameters

1.1

The core components of the information toll car include: computer, battery, power control system, cart, printing system, large capacity mobile power supply

1.2

Mainframe computer

Industrial control level electric all-in-one computer (physical heat dissipation silent)

1.3

Panel material

Table surface ABS antibacterial material smooth surface, easy to clean

2

Computer parameter

2.1

CPU chip

Intel Core I5

2.2

OS system

Windows 7，windows 10

2.3

Internal memory

DDR  8GB

2.4

Hard disk

256G Solid state drive

2.5

Wireless network

802.11 ac/a/b/g/n

2.6

Display interface

VGA+HDMI,Can support both

2.7

USB interface

USB3.0*4

2.8

Display interface

HDMI*1

2.9

Wired network port

Gigabit network port*1

3

Battery parameter

3.1

Battery cell

Lithium iron phosphate

3.2

Cycle number

≥2000 times

3.3

Charging time

≤5 hours

3.4

Service time

≥8 hours

3.5

Battery capacity

19V18Ah(342Wh)

3.6

Power cord

Convenient charging and storage at different distances

3.7

Leakage protection

With the shell to earth leakage current protection, electric shock protection function

3.8

Current-voltage protection

With over voltage, over current, under voltage, over charge, over discharge protection function

4

Power control system

4.1

Modular design

The modular design of power control system is conducive to stability and easy maintenance

4.2

Switch design

Self-locking push-button switch, completely cut off power when not working, conducive to transport safety and protect battery life

5

Caster parameter

5.1

Caster size

Medical grade silent casters

5.2

Caster characteristic

Comply with medical safety regulations infection control, non-sticky shavings universal wheel, overcome all kinds of flooring

5.3

Caster quantity

2 cardan wheels with brakes, 2 cardan without brakes

6

Trolley parameter

6.1

Overall dimension

Width 520 x height 1050 (reference) mm

6.2

Table size

Width 480mm x length 460mm

6.3

Weight of stroller

50KG（W/O Monitor, computer, power supply）

6.4

Main material

The table surface is ABS engineering plastic, the column is aluminum alloy profile, and the chassis and handle are cast aluminum

6.5

Drawer specification

Medicine drawer 75MM height, storage drawer 150MM, saline drawer 225MM height (according to hospital requirements)

6.6

Information configuration

I5-3230M,4GB RAM, 128GB SSD, dual-band wireless, 8 hours of battery life

6.7

Auxiliary dimension

360*220mm

6.8

plug-in

Customized according to customer requirements

6.9

Material of complete machine

Aluminum alloy, stainless steel and other high-quality anti-rust metal materials, panel using matte, medical grade ABS antibacterial material

6.10

Rail

German import with damping silent guide

6.11

Haft

Sunken all-aluminum handle, push-pull front and back, closed ring

6.12

Keyboard and mouse location

Hidden keyboard position, above the handle, unblocked, dedicated mouse mount

6.13

Desktop design

One seamless forming, with object anti-slide bar

6.14

Safe use

Pass third party cart ramp test

7

Monitor stand parameter

7.1

Display size

21.5 inch

7.2

Bracket adjustment Angle

Rotate 180 degrees left and right, the screen elevation can be adjusted by 30 degrees, and the display height can be adjusted by 150MM

8

Printer parameter

8.1

Pin printer

A4 Flat push pin printer

8.2

Laser printer

A4 black and white laser printer

8.3

The printing power

Available for continuous printing of 250 sheets

8.4

Print battery

1200W power UPS

9

Extensibility

9.1

Optional equipment

Payment scanner, card reader, recording camera, thermal printer

10

After-sales service

10.1

Technical training

Provide pre-sales professional technical support, simple troubleshooting training, prototype testing

10.2

Service hotline

Support 24*7 hours and 400 after-sales service hotline

11

Enterprise production

11.1

ISO9001

Quality management system

11.2

ISO14001

Environmental management system

11.3

ISO45001

Occupational health and safety management system

11.4

ISO20000

Information technology service management system

11.5

ISO27001

Information security management system

11.6

Product safety

Eu CE certificate

11.7

Product safety

China Electrical safety 3C certificate
