Core Thriving Workstation on Wheels Medical for Business
Company Advantages
· Core Thriving workstation on wheels medical is made with advanced production equipment and fine production technology.
· The product has a long service life, giving more economic benefit.
· Hangzhou Linan Star Intelligent Technology Co., Ltd owns advanced equipment, rich technical force and strong product R&D ability for workstation on wheels medical.
Product parameter
|
Healthcare Workstation Trolley HX-1902 |
||||
|
Healthcare Workstation Trolley Disposition |
||||
|
1.1 |
The core components of mobile ward round workstation include: computer, battery, power control system, trolley |
|||
|
1.2 |
Mainframe computer |
Industrial control level electric all-in-one computer (physical heat dissipation silent) |
||
|
1.3 |
Panel material |
Table surface ABS antibacterial material smooth surface, easy to clean |
||
|
2 |
Computer parameter |
|||
|
2.1 |
CPU chip |
Intel Core I5 |
||
|
2.2 |
OS system |
Windows 7，windows 10 |
||
|
2.3 |
Internal memory |
DDR 8GB |
||
|
2.4 |
Hard disk |
256G Solid state drive |
||
|
2.5 |
Wireless network |
802.11 ac/a/b/g/n |
||
|
2.6 |
Display interface |
VGA+HDMI,Can support both |
||
|
2.7 |
USB interface |
USB3.0*4 |
||
|
2.8 |
Display interface |
HDMI*1 |
||
|
2.9 |
Wired network port |
Gigabit network port*1 |
||
|
2.10 |
Waterproof and dustproof |
The vehicle passed the water and dust detection |
||
|
2.11 |
Electricity safety |
Electricity safety |
||
|
2.12 |
Communication network |
Built-in 5GB communication module, support full Netcom SIM card (optional according to the user's data connection requirements) |
||
|
2.13 |
Use environment |
Pass the third party vibration test |
||
|
3 |
Battery parameter |
|||
|
3.1 |
Battery cell |
Lithium iron phosphate |
||
|
3.2 |
Cycle number |
≥2000 times |
||
|
3.3 |
Charging time |
≤5 hours |
||
|
3.4 |
Service time |
≥8 hours |
||
|
3.5 |
Battery capacity |
19V18Ah(342Wh) |
||
|
3.6 |
Power cord |
Convenient charging and storage at different distances |
||
|
3.7 |
Leakage protection |
With the shell to earth leakage current protection, electric shock protection function |
||
|
3.8 |
Current-voltage protection |
With over voltage, over current, under voltage, over charge, over discharge protection function |
||
|
4 |
Power control system |
|||
|
4.1 |
Modular design |
The modular design of power control system is conducive to stability and easy maintenance |
||
|
4.2 |
Switch design |
Self-locking push-button switch, completely cut off power when not working, conducive to transport safety and protect battery life |
||
|
5 |
Caster parameter |
|||
|
5.1 |
Caster size |
Medical grade silent casters |
||
|
5.2 |
Caster characteristic |
Comply with medical safety regulations infection control, non-sticky shavings universal wheel, overcome all kinds of flooring |
||
|
5.3 |
Caster quantity |
2 cardan wheels with brakes, 2 cardan without brakes |
||
|
6 |
Trolley parameter |
|||
|
6.1 |
Storage drawer |
3-5 floors |
||
|
6.2 |
Overall dimension |
Width 520 x height 1050 (reference) mm |
||
|
6.3 |
Table size |
Width 480mm x length 460mm |
||
|
6.4 |
Weight of stroller |
50KG（W/O Monitor, computer, power supply） |
||
|
6.5 |
Main material |
The table surface is ABS engineering plastic, the column is aluminum alloy profile, and the chassis and handle are cast aluminum |
||
|
6.6 |
Drawer specification |
Medicine drawer 75MM height, storage drawer 150MM, saline drawer 225MM height (according to hospital requirements) |
||
|
6.7 |
Information configuration |
I5-3230M,4GB RAM, 128GB SSD, dual-band wireless, 8 hours of battery life |
||
|
6.8 |
Auxiliary dimension |
360*220mm |
||
|
6.9 |
plug-in |
Customized according to customer requirements |
||
|
6.10 |
Material of complete machine |
Aluminum alloy, stainless steel and other high-quality anti-rust metal materials, panel using matte, medical grade ABS antibacterial material |
||
|
6.11 |
Rail |
German import with damping silent guide |
||
|
6.12 |
Haft |
Sunken all-aluminum handle, push-pull front and back, closed ring |
||
|
6.13 |
Keyboard and mouse location |
Hidden keyboard position, above the handle, unblocked, dedicated mouse mount |
||
|
6.14 |
Desktop design |
One seamless forming, with object anti-slide bar |
||
|
6.15 |
Safe use |
Pass third party cart ramp test |
||
|
7 |
Monitor stand parameter |
|||
|
7.1 |
Display size |
21.5 inch |
||
|
7.2 |
Bracket adjustment Angle |
Rotate 180 degrees left and right, the screen elevation can be adjusted by 30 degrees, and the display height can be adjusted by 150MM |
||
|
8 |
After-sales service |
|||
|
8.1 |
Technical training |
Provide pre-sales professional technical support, simple troubleshooting training, prototype testing |
||
|
8.2 |
Service hotline |
Support 24*7 hours and 400 after-sales service hotline |
||
|
9 |
Enterprise production |
|||
|
9.1 |
ISO9001 |
Quality management system |
||
|
9.2 |
ISO14001 |
Environmental management system |
||
|
9.3 |
ISO45001 |
Occupational health and safety management system |
||
|
9.4 |
ISO20000 |
Information technology service management system |
||
|
9.5 |
ISO27001 |
Information security management system |
||
|
9.6 |
Product safety |
Eu CE certificate |
||
|
9.7 |
Product safety |
China Electrical safety 3C certificate |
||

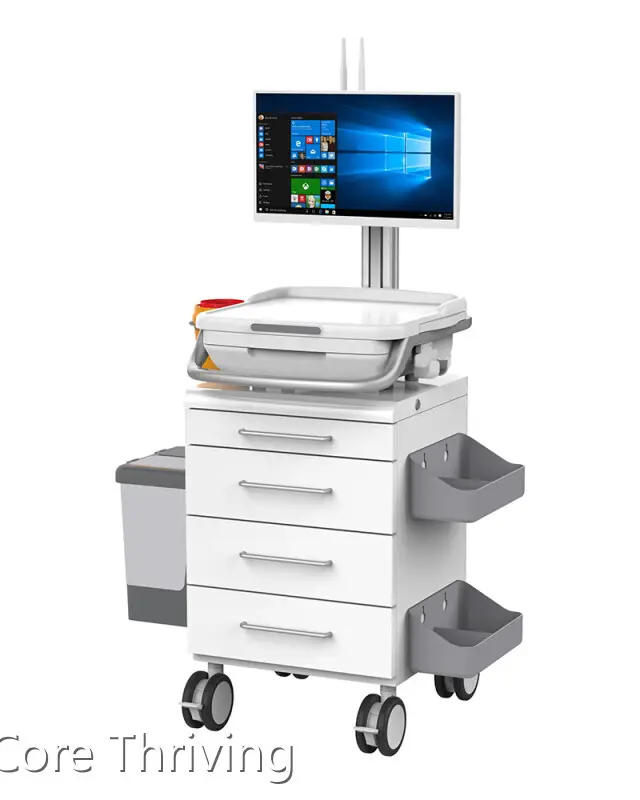

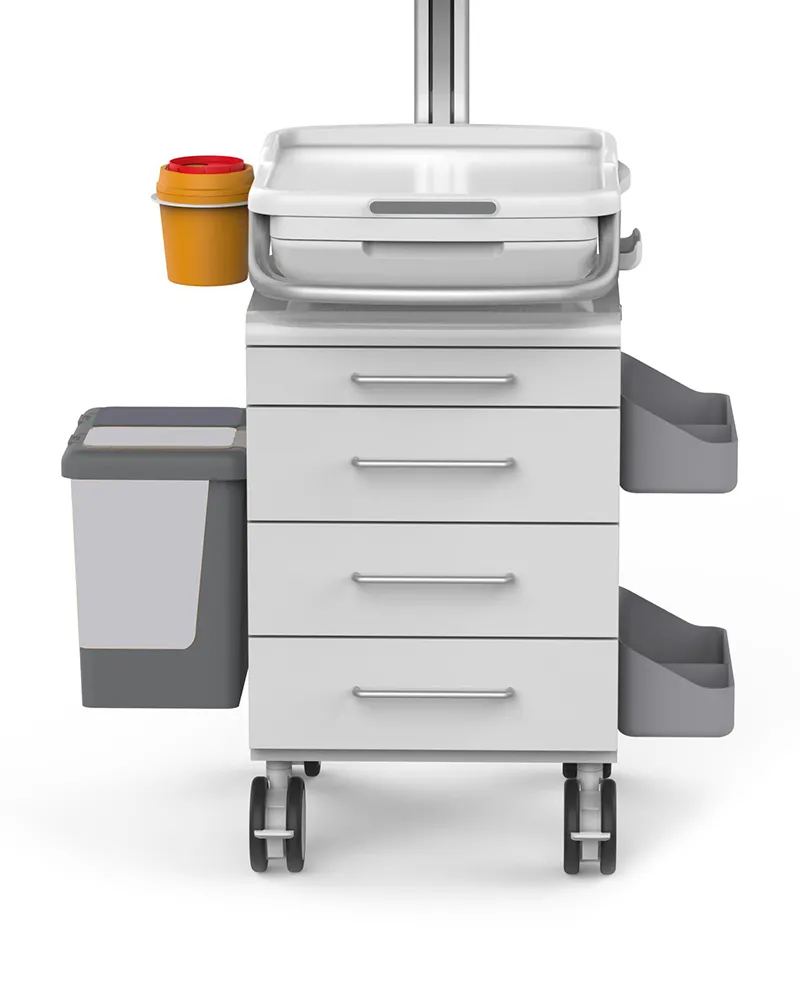

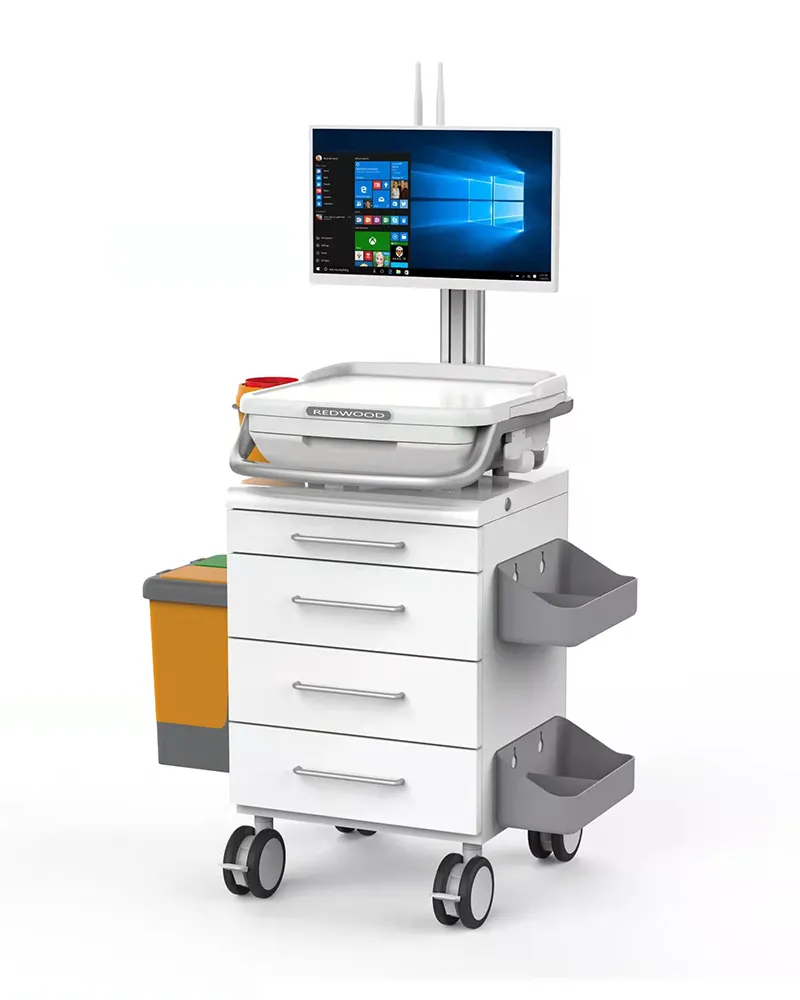

Product display
Company Features
· Hangzhou Linan Star Intelligent Technology Co., Ltd, a prestigious workstation on wheels medical manufacturer in China, has been focusing on the invention and production of innovative workstation on wheels medical.
· workstation on wheels medical is not only reflected in Core Thriving's products and technologies, but also reflected in our strategy and business model. workstation on wheels medical is the life of an enterprise which needs the full concentration and meticulous of employees during the work.
· Hangzhou Linan Star Intelligent Technology Co., Ltd provides professional service for every customer. Inquiry!
Application of the Product
Core Thriving's workstation on wheels medical is widely used in the industry and is widely recognized by customers.
Core Thriving is committed to producing quality Multi-functional Nursing Workstation,Healthcare Workstation Trolley,Medical mobile trolley,Computer Workstation Trolley,Medical Accounts Cart,Move The Fusioncube,Telemedicine Workstation Trolley and providing comprehensive and reasonable solutions for customers.
Enterprise Advantages
Our company has set up an efficient and practical team. Based on the pursuit for excellence, our team checks on all aspects, varying from production to sales and transportation of the products.
Core Thriving collects problems and demands from target customers all over the country through deep-going market research. Based on their needs, we keep improving and updating the original service, so as to achieve the maximum extent. This enables us to establish a good corporate image.
Since its establishment, our company has been adhering to the corporate tenet of 'integrity and responsibility', and taking 'proving high-quality products and serving the society' as the development direction. We are dedicated to becoming a respected company.
Our company was founded in After a difficult exploration of years, we have experienced the industrial development.
The social influence of our company has been greatly improved based on the coverage of sales network around the country. In addition, some of the products are exported to America, Africa, Europe and other countries and regions.
