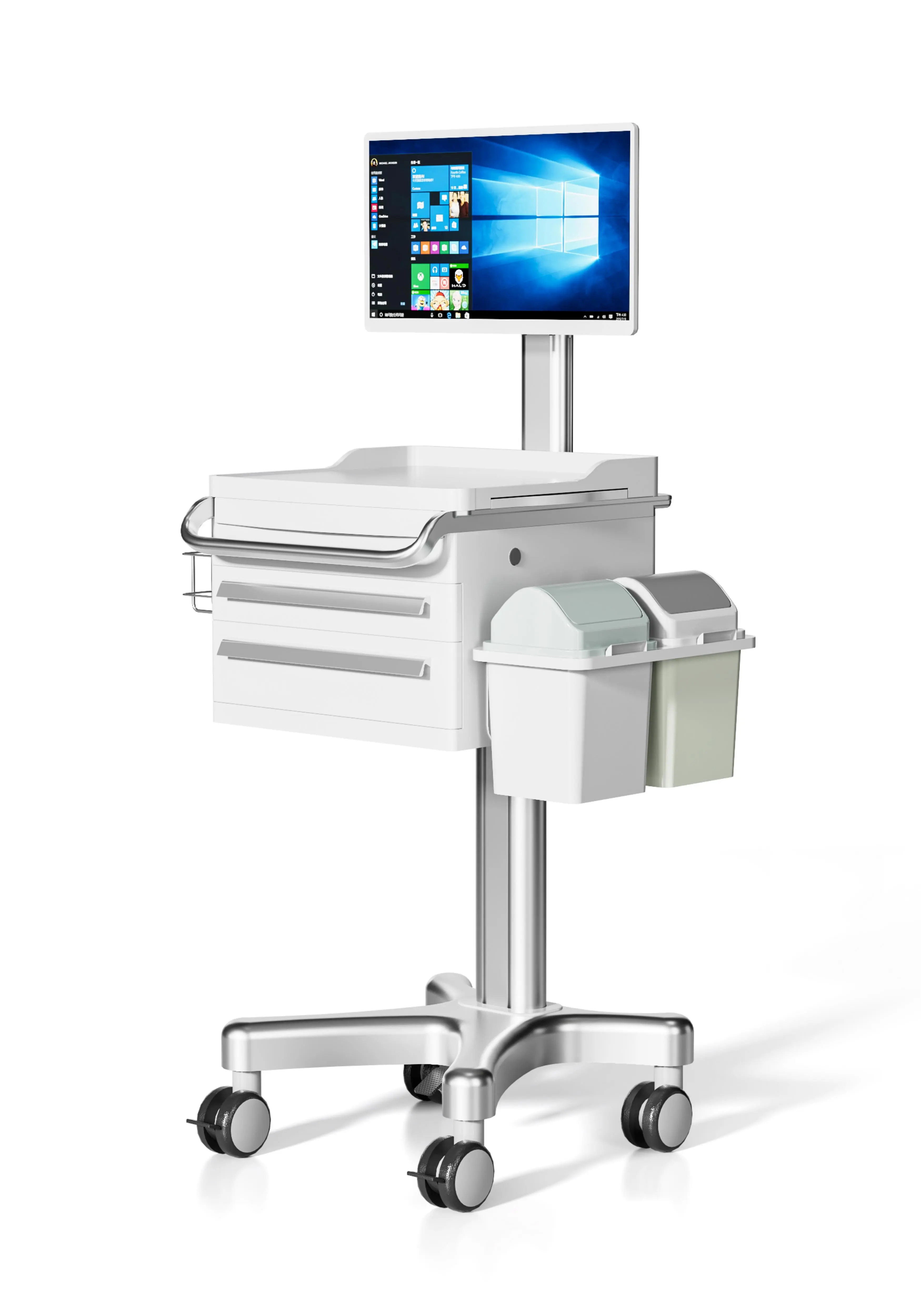

Mobile nursing vehicle HX-2101 -N Double Draw 1

Mobile nursing vehicle HX-2101 -N Double Draw 2

Mobile nursing vehicle HX-2101 -N Double Draw 3

Mobile nursing vehicle HX-2101 -N Double Draw 4

Mobile nursing vehicle HX-2101 -N Double Draw 5

Mobile nursing vehicle HX-2101 -N Double Draw 6

Mobile nursing vehicle HX-2101 -N Double Draw 7

Mobile nursing vehicle HX-2101 -N Double Draw 8

Mobile nursing vehicle HX-2101 -N Double Draw

● Manufacturer Qualification
ISO9001:Quality Management System
ISO14001:Environmental Management System
ISO45001:Occupational health and safety management system
ISO20001:Information Technology Service Management System
ISO27001:Information security management system
Product safety:China Electrical Safety 3C Certificate
Production Qualification:National Medical 13485 Production System
Energy saving certificate:National Energy-Saving Product Certification
Transportation safety:Lithium iron phosphate batteries meet safety testing requirements for sea and air transport.
After-sales service:5A-level after-sales service certification

Inquiry

Write a Review

Product parameter

Configuration
The core components of the mobile nursing workstation include: computer, battery, power control system, and trolley.
Computer host	Industrial-grade all-in-one computer with built-in power supply (physical heat dissipation and silent operation) (3C certification provided)
Panel Material	Medical-grade 304 stainless steel surface antibacterial and anti- mildew treatment

Computer parameters
CPU chip	i5 8th (12th)
OS system	Windows 10
Memory	DDR 8 GB ( 16G, 32G )
harddisk	128GB SSD ( 256GB , 512GB )
wireless network	802.11 ac/a/b/g/n supports 2.4G and 5G LANs.
Display Interface	VGA + HDMI, can be supported simultaneously
USB interface	USB 3.0 * 4 USB 2.0 * 2
Display Interface	HDMI1 , VGA1
wired network port	1 gigabit network port
Waterproof and dustproof	The entire vehicle passed the waterproof and dustproof test.
Electrical safety	The vehicle passed the electrical equipment safety test.
Communication Network	Built-in 5GB communication module, supports all network compatible SIM cards (optional, depending on the user's data connection requirements).
Usage Environment	Passed third-party shock resistance test

Battery parameters
Battery cells	Lithium iron phosphate (LiFePO4 battery material testing report provided by third-party laboratory)
Loop count	≥ 2000 times
Charging time	≤5 hours
Usage Time	This workstation can operate normally for more than 12 hours ( proof of 12- hour battery life test results provided).
Battery capacity	19 V 18 Ah ( 342 Wh)
power cord	The power cord can be either a spiral spring or a straight cord, making it convenient for charging and storage at different distances.
Residual current protection	It has leakage current protection to ground and electric shock protection functions.
Current and voltage protection	It has overvoltage, overcurrent, undervoltage, overcharge, and over-discharge protection functions.
charger	90W 4A

Power control system
Modular design	The modular design of the power control system promotes stability and facilitates maintenance.
Switch Design	The self-locking push-button switch completely cuts off the power when not in use, which is beneficial for transportation safety and protects battery life.

Caster parameters
Caster size	Taiwan Desheng Medical Grade Silent Dual Pedal Casters
Caster characteristics	Compliant with medical safety and infection control regulations, non-lint-collecting casters, and able to withstand various types of flooring.
Number of casters	Two swivel casters with brakes; two swivel casters without brakes.

stroller parameters
Battery display	The system desktop battery indicator can be placed in the taskbar.
External dimensions	520 mm wide * 460 mm long * 1050 mm high
Workbench Dimensions	500 mm wide * 460 mm long
Total weight of the trolley	35 KG ( W/O monitor, computer, power supply)
Main Materials	The tabletop is made of 304 stainless steel, the uprights are made of aluminum alloy profiles, and the chassis and handles are made of cast aluminum (RoHS certification of equipment materials must be provided).
Lifting size	The downward lifting stroke is 280mm, and the upward lifting stroke is 130mm.
Lifting method	The lower lifting mechanism is pneumatically operated by foot pedal, while the upper lifting mechanism is pneumatically operated by switch.
Sub-table dimensions	260*200 mm
External accessories	Customized according to customer requirements
Overall material	High-quality rust-resistant and antibacterial metal materials such as aluminum alloy and stainless steel
guide	Damped silent guide rail
Handle	The recessed, one-piece molded all-aluminum handle can be pushed and pulled forward and backward, forming a closed ring. (Photos of the actual product are provided)
Keyboard and mouse position	Hidden keyboard tray, with dimensions modified to 425*155mm, located above the handle, pops out with a press, unobstructed, and includes a dedicated mouse holder.
Desktop Design	Made of seamless stainless steel, featuring anti-slip strips. (Photos of the actual product are provided)
Safe use	Third-party cart ramp test
External accessories	Optional add-ons: nursing stool/hand sanitizer dispenser/small-capacity trash can/sharpware holder/double drawer

Monitor stand parameters
size	21.5-inch , 23.8-inch
Adjusting the angle of the bracket	Rotate 360 degrees left and right, screen tilt angle adjustable from -15 to 30 degrees, display height adjustable by 150 mm.
Tilting angle adjustment	The screen tilt angle can be adjusted to a hover mode that is ready to use immediately, without the need for a switch or tools.

After-sales service
Technical training	Provides dedicated pre-sales technical support, basic troubleshooting training, and prototype testing.
Service Hotline	Supports 24/7 service and 400 after-sales service hotline.

Manufacturer Qualification
ISO9001	Quality Management System
ISO14001	Environmental Management System
ISO45001	Occupational health and safety management system
ISO20001	Information Technology Service Management System
ISO27001	Information security management system
Product safety	China Electrical Safety 3C Certificate
Production Qualification	National Medical 13485 Production System
Energy saving certificate	National Energy-Saving Product Certification
Transportation safety	Lithium iron phosphate batteries meet safety testing requirements for sea and air transport.
After-sales service	5A-level after-sales service certification

Product display

HX-2101-N 双抽渲染图

HX-2101-N 双抽右侧面

HX-2101-N 双抽右面

HX-2101-N 双抽正面

HX-2101-N 双抽左侧面

HX-2101-N 双抽左面

HX-2101-N 双抽

HX-2101-N 双抽背面
