Company Advantages
· Core Thriving medical mobile computer workstation is designed under the guidance of highly skilled designers.
· The product has survived the rigorous quality and durability testings.
· In tune with the track of market development, the product is widely accepted by customers.
Product parameter
|
Medical Accounts Cart parameters HX-1905 |
||||
|
Medical Accounts Cart parameters |
||||
|
1.1 |
The core components of the information toll car include: computer, battery, power control system, cart, printing system, large capacity mobile power supply |
|||
|
1.2 |
Mainframe computer |
Industrial control level electric all-in-one computer (physical heat dissipation silent) |
||
|
1.3 |
Panel material |
Table surface ABS antibacterial material smooth surface, easy to clean |
||
|
2 |
Computer parameter |
|||
|
2.1 |
CPU chip |
Intel Core I5 |
||
|
2.2 |
OS system |
Windows 7，windows 10 |
||
|
2.3 |
Internal memory |
DDR 8GB |
||
|
2.4 |
Hard disk |
256G Solid state drive |
||
|
2.5 |
Wireless network |
802.11 ac/a/b/g/n |
||
|
2.6 |
Display interface |
VGA+HDMI,Can support both |
||
|
2.7 |
USB interface |
USB3.0*4 |
||
|
2.8 |
Display interface |
HDMI*1 |
||
|
2.9 |
Wired network port |
Gigabit network port*1 |
||
|
3 |
Battery parameter |
|||
|
3.1 |
Battery cell |
Lithium iron phosphate |
||
|
3.2 |
Cycle number |
≥2000 times |
||
|
3.3 |
Charging time |
≤5 hours |
||
|
3.4 |
Service time |
≥8 hours |
||
|
3.5 |
Battery capacity |
19V18Ah(342Wh) |
||
|
3.6 |
Power cord |
Convenient charging and storage at different distances |
||
|
3.7 |
Leakage protection |
With the shell to earth leakage current protection, electric shock protection function |
||
|
3.8 |
Current-voltage protection |
With over voltage, over current, under voltage, over charge, over discharge protection function |
||
|
4 |
Power control system |
|||
|
4.1 |
Modular design |
The modular design of power control system is conducive to stability and easy maintenance |
||
|
4.2 |
Switch design |
Self-locking push-button switch, completely cut off power when not working, conducive to transport safety and protect battery life |
||
|
5 |
Caster parameter |
|||
|
5.1 |
Caster size |
Medical grade silent casters |
||
|
5.2 |
Caster characteristic |
Comply with medical safety regulations infection control, non-sticky shavings universal wheel, overcome all kinds of flooring |
||
|
5.3 |
Caster quantity |
2 cardan wheels with brakes, 2 cardan without brakes |
||
|
6 |
Trolley parameter |
|||
|
6.1 |
Overall dimension |
Width 520 x height 1050 (reference) mm |
||
|
6.2 |
Table size |
Width 480mm x length 460mm |
||
|
6.3 |
Weight of stroller |
50KG（W/O Monitor, computer, power supply） |
||
|
6.4 |
Main material |
The table surface is ABS engineering plastic, the column is aluminum alloy profile, and the chassis and handle are cast aluminum |
||
|
6.5 |
Drawer specification |
Medicine drawer 75MM height, storage drawer 150MM, saline drawer 225MM height (according to hospital requirements) |
||
|
6.6 |
Information configuration |
I5-3230M,4GB RAM, 128GB SSD, dual-band wireless, 8 hours of battery life |
||
|
6.7 |
Auxiliary dimension |
360*220mm |
||
|
6.8 |
plug-in |
Customized according to customer requirements |
||
|
6.9 |
Material of complete machine |
Aluminum alloy, stainless steel and other high-quality anti-rust metal materials, panel using matte, medical grade ABS antibacterial material |
||
|
6.10 |
Rail |
German import with damping silent guide |
||
|
6.11 |
Haft |
Sunken all-aluminum handle, push-pull front and back, closed ring |
||
|
6.12 |
Keyboard and mouse location |
Hidden keyboard position, above the handle, unblocked, dedicated mouse mount |
||
|
6.13 |
Desktop design |
One seamless forming, with object anti-slide bar |
||
|
6.14 |
Safe use |
Pass third party cart ramp test |
||
|
7 |
Monitor stand parameter |
|||
|
7.1 |
Display size |
21.5 inch |
||
|
7.2 |
Bracket adjustment Angle |
Rotate 180 degrees left and right, the screen elevation can be adjusted by 30 degrees, and the display height can be adjusted by 150MM |
||
|
8 |
Printer parameter |
|||
|
8.1 |
Pin printer |
A4 Flat push pin printer |
||
|
8.2 |
Laser printer |
A4 black and white laser printer |
||
|
8.3 |
The printing power |
Available for continuous printing of 250 sheets |
||
|
8.4 |
Print battery |
1200W power UPS |
||
|
9 |
Extensibility |
|||
|
9.1 |
Optional equipment |
Payment scanner, card reader, recording camera, thermal printer |
||
|
10 |
After-sales service |
|||
|
10.1 |
Technical training |
Provide pre-sales professional technical support, simple troubleshooting training, prototype testing |
||
|
10.2 |
Service hotline |
Support 24*7 hours and 400 after-sales service hotline |
||
|
11 |
Enterprise production |
|||
|
11.1 |
ISO9001 |
Quality management system |
||
|
11.2 |
ISO14001 |
Environmental management system |
||
|
11.3 |
ISO45001 |
Occupational health and safety management system |
||
|
11.4 |
ISO20000 |
Information technology service management system |
||
|
11.5 |
ISO27001 |
Information security management system |
||
|
11.6 |
Product safety |
Eu CE certificate |
||
|
11.7 |
Product safety |
China Electrical safety 3C certificate |
||

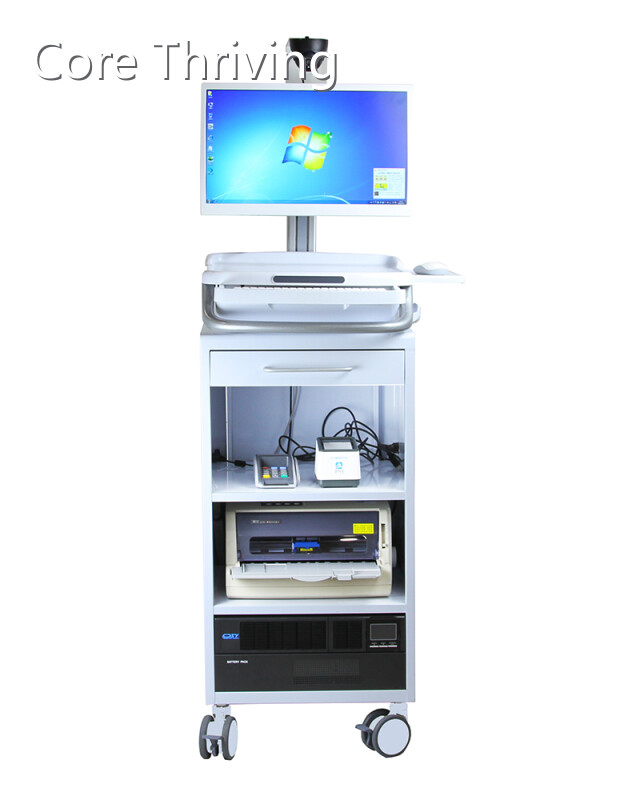

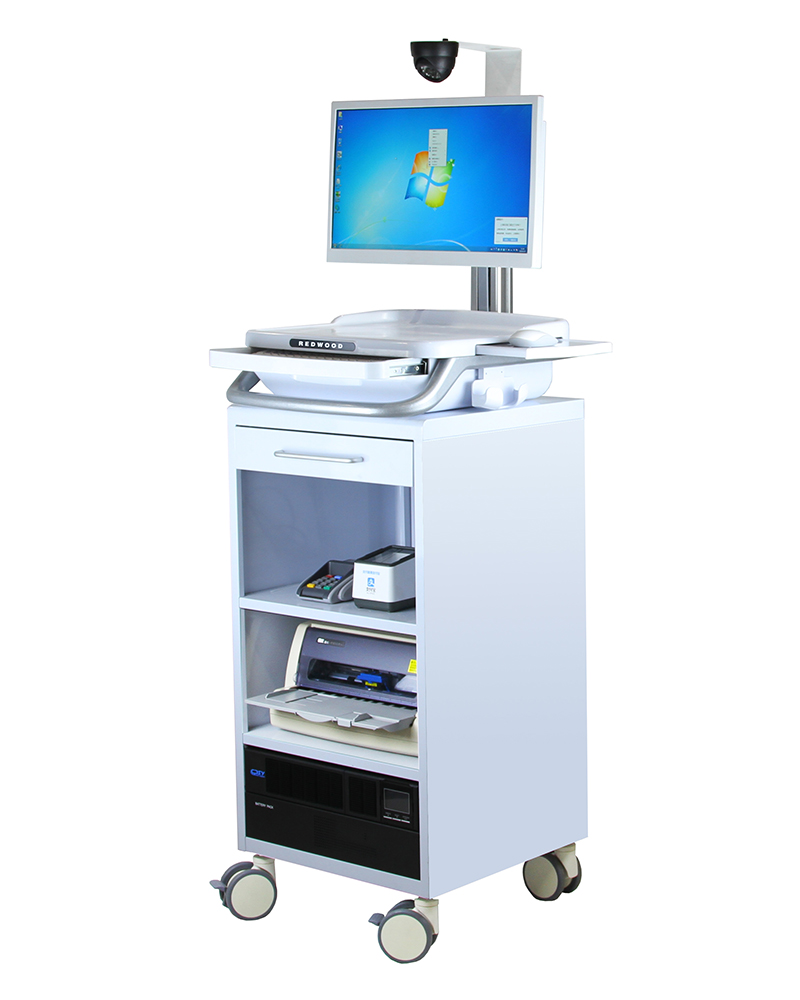

Product display
Company Features
· Over the years, Hangzhou Linan Star Intelligent Technology Co., Ltd has grown from a small team to one of the premier manufacturers of medical mobile computer workstation.
· Core Thriving has a whole set of machines to ensure that the quality of medical mobile computer workstation. With strict quality control system, Core Thriving ensures that the quality of medical mobile computer workstation to be the best.
· We will support environmental protection with science and technology. We'll introduce manufacturing facilities that are designed for environment protection to help us realize this mission.
Product Details
The medical mobile computer workstation produced by our company have superior quality, and the specific details of products are presented in the following section.
Product Comparison
Our medical mobile computer workstation has the following advantages over peer products.
Enterprise Advantages
Core Thriving is equipped with a professional technology and R&D team. The quality products, in line with international standards, are produced by our team members based on advanced technology.
Core Thriving runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
Core Thriving's enterprise spirit is to be strict and pragmatic and innovative. The business concept is to develop steadily based on honesty. We improve economic efficiency with technological innovations. Our goal is to provide consumers with better products and more professional services.
Core Thriving, founded in has a development history of years. We have constantly explored in the industry and have experienced arduous development. Now we are a modern enterprise with a relatively large influence in the industry.
Our products are sold well at home and abroad.
