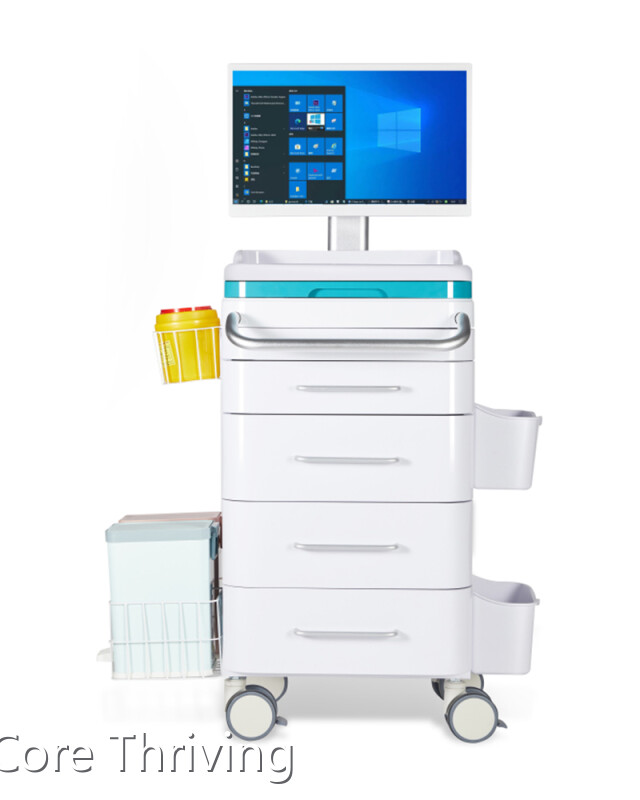

Product details of the mobile desktop workstation
Product Information
The offered Core Thriving mobile desktop workstation is crafted using premium materials which are in compliance with the current market standards. The quality control is highlighted during production, ensuring the stable quality of the product. The latest technology has been put into production of mobile desktop workstation.
Product parameter
|
Computer workstation trolley parameters HX-2102 |
||||
|
Computer workstation trolley parameters |
||||
|
1.1 |
The core components of mobile ward round workstation include: computer, battery, power control system, trolley |
|||
|
1.2 |
Mainframe computer |
Industrial control level electric all-in-one computer (physical heat dissipation silent) |
||
|
1.3 |
Panel material |
Table surface ABS antibacterial material smooth surface, easy to clean |
||
|
2 |
Computer parameter |
|||
|
2.1 |
CPU chip |
Intel Core I5 |
||
|
2.2 |
OS system |
Windows 7，windows 10 |
||
|
2.3 |
Internal memory |
DDR 8GB |
||
|
2.4 |
Hard disk |
256G Solid state drive |
||
|
2.5 |
Wireless network |
802.11 ac/a/b/g/n |
||
|
2.6 |
Display interface |
VGA+HDMI,Can support both |
||
|
2.7 |
USB interface |
USB3.0*4 |
||
|
2.8 |
Display interface |
HDMI*1 |
||
|
2.9 |
Wired network port |
Gigabit network port*1 |
||
|
2.10 |
Waterproof and dustproof |
The vehicle passed the water and dust detection |
||
|
2.11 |
Electricity safety |
Electricity safety |
||
|
2.12 |
Communication network |
Built-in 5GB communication module, support full Netcom SIM card (optional according to the user's data connection requirements) |
||
|
2.13 |
Use environment |
Pass the third party vibration test |
||
|
3 |
Battery parameter |
|||
|
3.1 |
Battery cell |
Lithium iron phosphate |
||
|
3.2 |
Cycle number |
≥2000 times |
||
|
3.3 |
Charging time |
≤5 hours |
||
|
3.4 |
Service time |
≥8 hours |
||
|
3.5 |
Battery capacity |
19V18Ah(342Wh) |
||
|
3.6 |
Power cord |
Convenient charging and storage at different distances |
||
|
3.7 |
Leakage protection |
With the shell to earth leakage current protection, electric shock protection function |
||
|
3.8 |
Current-voltage protection |
With over voltage, over current, under voltage, over charge, over discharge protection function |
||
|
4 |
Power control system |
|||
|
4.1 |
Modular design |
The modular design of power control system is conducive to stability and easy maintenance |
||
|
4.2 |
Switch design |
Self-locking push-button switch, completely cut off power when not working, conducive to transport safety and protect battery life |
||
|
5 |
Caster parameter |
|||
|
5.1 |
Caster size |
Medical grade silent casters |
||
|
5.2 |
Caster characteristic |
Comply with medical safety regulations infection control, non-sticky shavings universal wheel, overcome all kinds of flooring |
||
|
5.3 |
Caster quantity |
2 cardan wheels with brakes, 2 cardan without brakes |
||
|
6 |
Trolley parameter |
|||
|
6.1 |
Storage drawer |
3-5 floors |
||
|
6.2 |
Overall dimension |
Width 520 x height 1050 (reference) mm |
||
|
6.3 |
Table size |
Width 480mm x length 460mm |
||
|
6.4 |
Weight of stroller |
50KG（W/O Monitor, computer, power supply） |
||
|
6.5 |
Main material |
The table surface is ABS engineering plastic, the column is aluminum alloy profile, and the chassis and handle are cast aluminum |
||
|
6.6 |
Drawer specification |
Medicine drawer 75MM height, storage drawer 150MM, saline drawer 225MM height (according to hospital requirements) |
||
|
6.7 |
Information configuration |
I5-3230M,4GB RAM, 128GB SSD, dual-band wireless, 8 hours of battery life |
||
|
6.8 |
Auxiliary dimension |
360*220mm |
||
|
6.9 |
plug-in |
Customized according to customer requirements |
||
|
6.10 |
Material of complete machine |
Aluminum alloy, stainless steel and other high-quality anti-rust metal materials, panel using matte, medical grade ABS antibacterial material |
||
|
6.11 |
Rail |
German import with damping silent guide |
||
|
6.12 |
Haft |
Sunken all-aluminum handle, push-pull front and back, closed ring |
||
|
6.13 |
Keyboard and mouse location |
Hidden keyboard position, above the handle, unblocked, dedicated mouse mount |
||
|
6.14 |
Desktop design |
One seamless forming, with object anti-slide bar |
||
|
6.15 |
Safe use |
Pass third party cart ramp test |
||
|
7 |
Monitor stand parameter |
|||
|
7.1 |
Display size |
21.5 inch |
||
|
7.2 |
Bracket adjustment Angle |
Rotate 180 degrees left and right, the screen elevation can be adjusted by 30 degrees, and the display height can be adjusted by 150MM |
||
|
8 |
After-sales service |
|||
|
8.1 |
Technical training |
Provide pre-sales professional technical support, simple troubleshooting training, prototype testing |
||
|
8.2 |
Service hotline |
Support 24*7 hours and 400 after-sales service hotline |
||
|
9 |
Enterprise production |
|||
|
9.1 |
ISO9001 |
Quality management system |
||
|
9.2 |
ISO14001 |
Environmental management system |
||
|
9.3 |
ISO45001 |
Occupational health and safety management system |
||
|
9.4 |
ISO20000 |
Information technology service management system |
||
|
9.5 |
ISO27001 |
Information security management system |
||
|
9.6 |
Product safety |
Eu CE certificate |
||
|
9.7 |
Product safety |
China Electrical safety 3C certificate |
||
Product display
