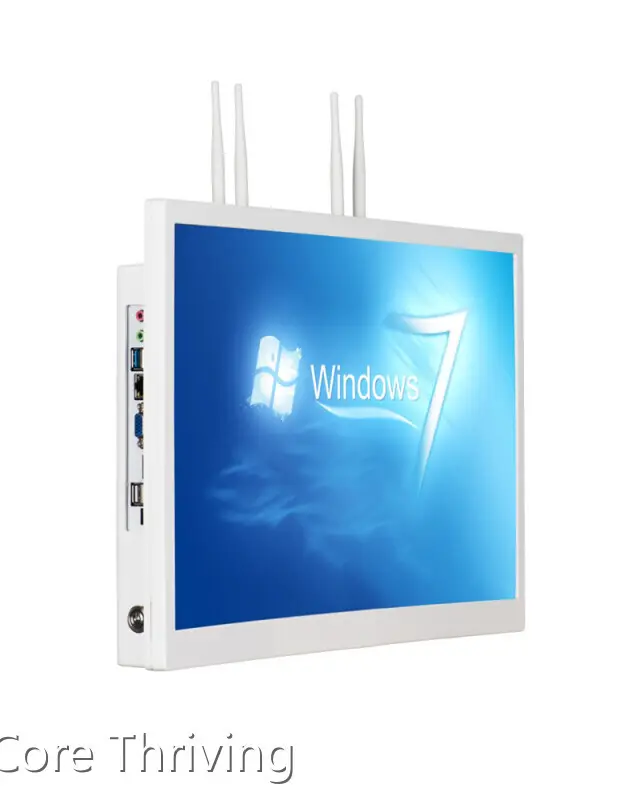

All in One Pc Touch Screen Wall Mountable Products Wholesale - Core Thriving

Move The Fusioncube Parameters

Move The Fusioncube Configuration

1.1

The core components of the move the fusioncube: computer, battery, power control system

1.2

☆Computer Host

Industrial control-grade all-in-one computer (physical heat dissipation and quiet operation) (providing 3C certification)

2

Computer parameters

2.1

CPU Chip

Intel Core I5 I7 Optional

2.2

OS System

Windows 7，windows 10 Optional

2.3

Memory

DDR4  4GB/8GB/16GB Optional

2.4

Hard Disk

128G/256G/512G Solid State Drive Optional

2.5

Wireless Network

802.11 ac/a/b/g/n Support 2.4G and 5G LAN

2.6

Display Interface

VGA+HDMI,Can support both.

2.7

USB Interface

USB3.0*2   USB2.0*4

2.8

Display Interface

HDMI*1，VGA*1

2.9

Wired Network Port

Gigabit Ethernet*1

2.10

Waterproof And Dustproof

The whole vehicle has passed the waterproof and dustproof test (a copy of the certificate must be provided, the certified unit must be the cart manufacturer, and the certified model must be consistent with the bid model)

2.11

Electricity Safety

The whole vehicle has passed the YY 0505 medical electrical equipment safety test (a copy of the medical electrical equipment safety test certificate issued by a third-party intermediary agency must be provided, and the certified unit must be the cart manufacturer)

2.12

Communication Network

Built-in 5GB communication module, supports all-network SIM cards (optional according to the user's data connection requirements)

2.13

Usage Environment

Passed third-party shockproof test (providing test report)

3

Battery Parameters

3.1

☆Battery Cell

Lithium iron phosphate (provide third-party laboratory material lithium iron phosphate battery test report)

3.2

Number Of Cycles

≥2000 times or more

3.3

Charging Time

≤5 hours

3.4

☆Usage Time

This workstation works normally for more than 8 hours (provide 8-hour endurance test certificate)

3.5

Battery Capacity

19V18Ah(342Wh)

3.6

Charging Cable

Convenient for charging and storage at different distances

3.7

Leakage Protection

With shell to ground leakage current protection and electric shock protection

3.8

Current And Voltage Protection

With overvoltage, overcurrent, undervoltage, overcharge, overdischarge protection

4

Power Control System

4.1

Modular Design

The modular design of the power control system is conducive to stability and easy maintenance.

4.2

☆Switch Design

The self-locking button switch completely cuts off the power supply when not working, which is conducive to transportation safety and protects battery life.

5

After-sales Service

5.1

Technical Training

Provide pre-sales professional technical support, simple troubleshooting training, and prototype testing.

5.2

Service Hotline

Support 24*7 hours and dedicated after-sales service hotline

6

Enterprise Production

6.1

ISO9001

Quality Management System

6.2

ISO14001

Environmental Management System

6.3

ISO45001

Occupational Health And Safety Management System

6.4

Product Safety

EU CE certificate

6.5

Product Safety

China Electrical Safety 3C Certificate

6.6

Production Qualification

National Medical 13485 Production System
