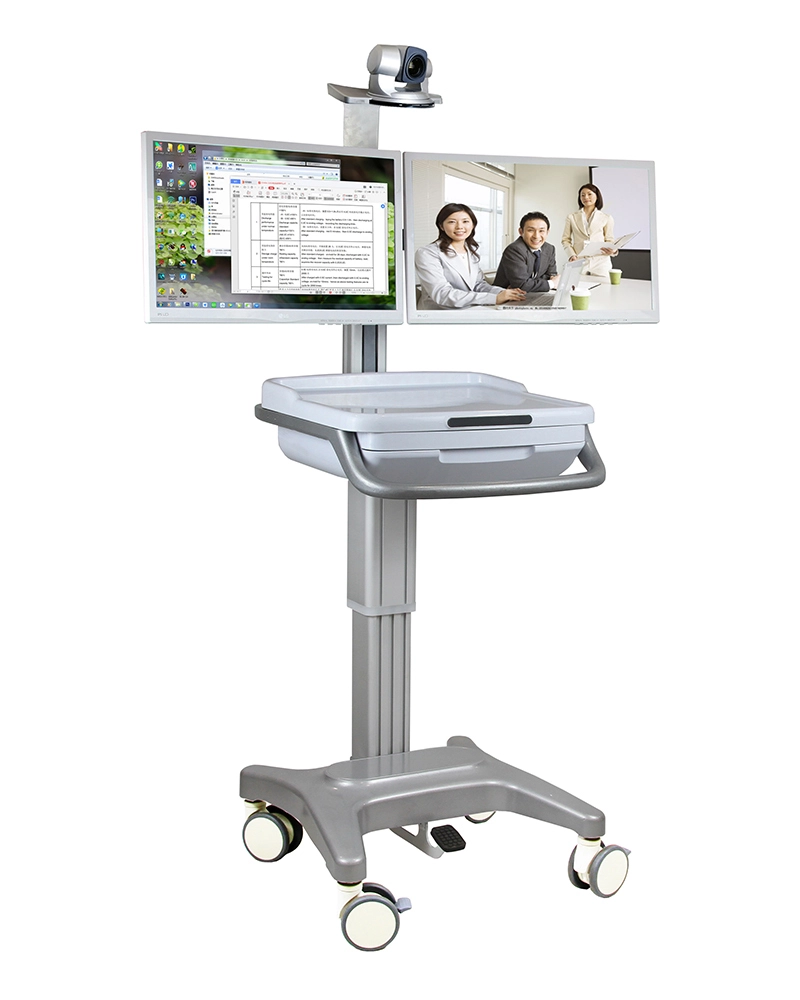

Dual Monitor Medical Cart Telemedicine Workstation Trolley Bidding HX-1906

Telemedicine Workstation Trolley Bidding Parameters HX-1906

Telemedicine Workstation Trolley Configuration

1.1

The core components of the telemedicine workstation trolley include: computer, battery, power control system, trolley, and camera system

1.2

Computer Host

Industrial control-grade all-in-one computer (physical heat dissipation and quiet operation)

1.3

Panel Material

The tabletop is made of ABS antibacterial material, which is smooth and easy to clean.

2

Computer Parameters

2.1

CPU Chip

Intel Core I5

2.2

OS System

Windows 7，windows 10

2.3

Memory

DDR4  4GB，8GB optional

2.4

Hard Disk

128G，256G,512G SSD optional

2.5

Wireless Network

802.11 ac/a/b/g/n

2.6

Display Interface

VGA+HDMI,can support both

2.7

USB Interface

USB3.0*4

2.8

Display Interface

HDMI*1

2.9

Wired Network Port

Gigabit Ethernet*1

3

Battery Parameters

3.1

Battery Cell

Lithium Iron Phosphate

3.2

Number Of Cycles

≥2000 times or more

3.3

Charging Time

≤5 hour

3.4

Usage Time

This workstation works normally for more than 8 hours.

3.5

Battery Capacity

19V18Ah(342Wh)

3.6

Power Cord

Convenient for charging and storage at different distances

3.7

Leakage Protection

It has shell-to-ground leakage current protection and electric shock protection.

3.8

Current And Voltage Protection

It has overvoltage, overcurrent, undervoltage, overcharge, and overdischarge protection functions.

4

Power Control System

4.1

Modular Design

The modular design of the power control system is conducive to stability and easy maintenance.

4.2

Switch Design

The self-locking button switch completely cuts off the power when not working, which is conducive to transportation safety and protects battery life.

5

Caster Parameters

5.1

Caster Size

Medical grade silent casters

5.2

Caster Characteristics

Comply with medical safety regulations for infection control, non-sticky dander universal wheels, overcome all kinds of flooring.

5.3

Caster Quantity

2 universal wheels with brakes, 2 universal wheels without brakes.

6

Cart Parameters

6.1

Button Display Panel

Desktop lift button, power display

6.2

Dimensions

Width 520*Height 1050 (reference) mm

6.3

Work Surface Dimensions

Width 480*Length 460 mm

6.4

Cart Weight

50KG (W/O monitor, computer, power supply)

6.5

Main Material

The tabletop is ABS engineering plastic, the column is aluminum alloy profile, the chassis and handle are metal cast aluminum.

6.6

Lifting Dimensions

The lower lift stroke is 300 mm, the upper lift stroke is 150 mm

6.7

Information Configuration

I5-3230M, 4GB memory, 128GB solid state drive, dual-band wireless, 8 hours of battery life

6.8

Sub-Desk Size

360*220mm

6.9

External Accessories

Customized according to customer requirements

6.10

Material Of The Whole Machine

High-quality rust-proof metal materials such as aluminum alloy and stainless steel, the panel adopts matte, medical-grade ABS antibacterial material.

6.11

Guide Rails

German imported damping silent rails.

6.12

Handle

Sunken one-piece all-aluminum handle, can be pushed and pulled back and forth, closed ring.

6.13

Keyboard And Mouse Position

Hidden keyboard position, above the handle, unobstructed, dedicated mouse hanger.

6.14

Desktop Design

One-piece seamless molding, with anti-slip barrier strips.

7

Monitor Stand Parameters

7.1

Size

21.5 inches

7.2

Stand Adjustment Angle

180 degrees rotation, 30 degrees screen tilt, 150mm display height adjustment.

8

Audio and video parameters

8.1

Camera

3x optical zoom, viewing angle 31-100 degrees, 1080P/30FPS.

8.2

Mic

Omnidirectional 30 square

9

After-sales service

9.1

Technical training

Provide pre-sales professional technical support, simple troubleshooting training, prototype testing.

9.2

Service hotline

Support 24*7 hours and 400 after-sales service hotline.
